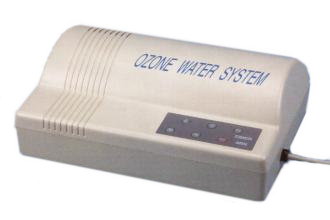

OZONE WATER SYSTEM

O3 Generator (HV-102)
Power
: AC 100V-120V, AC220V-240V
Auto Timer Control : 5,10,15,30,60 Min., Continue
Pump Air Flow : 2.5 L/Min.
Ozone Output : 125 mg/Hour
Outer Size : 300 x 200 x 115 mm
Current Consumption : 0.15A
Weight : 2.4 Kgs
Packing : 1 pc/Box, 2 pcs/Inner Box, 4 pcs/Carton,
Packing : 2.2 CUFT,  GW : 13Kgs/Carton

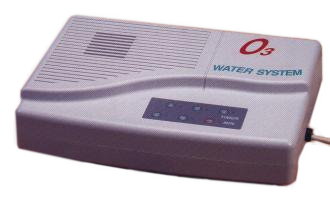

O
3 Generator (HV-10
3)
Power
: AC 100V-120V, AC220V-240V
Auto Timer Control : 5,10,15,30,60 Min., Continue
Pump Air Flow : 2.5 L/Min.
Ozone Output : 250 mg/Hour
Outer Size : 320 x 220 x 96 mm
Current Consumption : 0.2A
Weight : 2.0 Kgs
Packing : 1 pc/Box, 2 pcs/Inner Box, 4 pcs/Carton,
Packing : 2.4 CUFT,  GW : 12Kgs/Carton

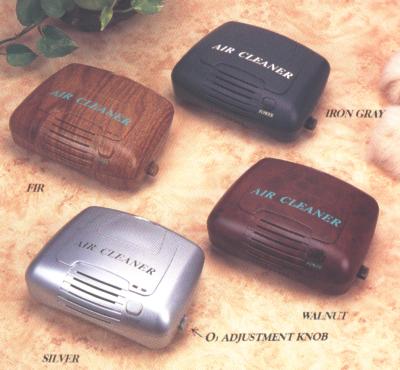

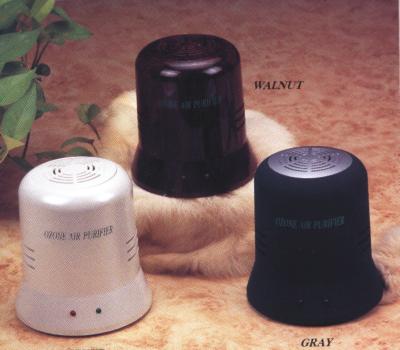

OZONE AIR PURIFIER

Auto Timer : (10 Min. / Cycle),
     Hi : ON(3 Min.)/OFF(7 Min.),

     Lo : ON(1 Min.)/OFF(9 Min.)
Air Flow : 16 L/Min.
Power : Input DC12V
Power Consumption : 8W
Size :134(Dia.) x 143 mm
Ozone Rate : Hi - 18 mg/Hour (0.06 ppm),

                     Lo - 6 mg/Hour (0.02 ppm)
Weight : 420g
Packing : 1 pc/Box, 12 pcs/Carton / 2.0 CUFT / GW : 11Kgs.


Clean the air-pollution in your car, compensate anion to natural fresh.

Input Voltage : DC 12V
Current Consumption : 400 mA
Negative Ion : -9KV
Operating Temperature : 0 to 40¢J
Ozone Range : 5 - 20 mg/Hour
Size : (L)180 x (W)136 x (H)64 mm
Weight : 400 g
Packing : 1 pc/color box, 24 pcs/Ctn. / 1.9 CUFT / GW : 13 Kgs.

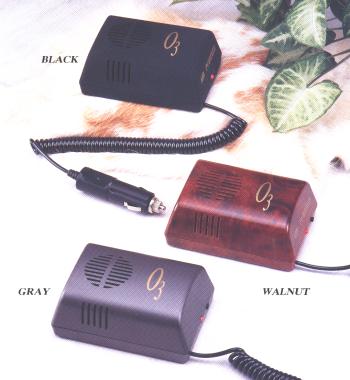

OZONE AIR PURIFIER (For Car Only)

Power : DC12V
Current Consumption : 300 mA
Ozone Rate : 9 mg/Hour
Operating Temperature : 0 to 40¢J
Outer Size : (L)116 x (W)80 x (H)50 mm
Weight : 280g
Packing : 1 pc/Card, 24 pcs/Ctn./ 1.9 CUFT / GW : 10 Kgs

¡@
